Product Advantage
Left-right cutting reamer is suitable for processing through the hole, iron filings row down, it is not easy to scratch the surface of the workpiece, can ensure more stable machining finish in the hole

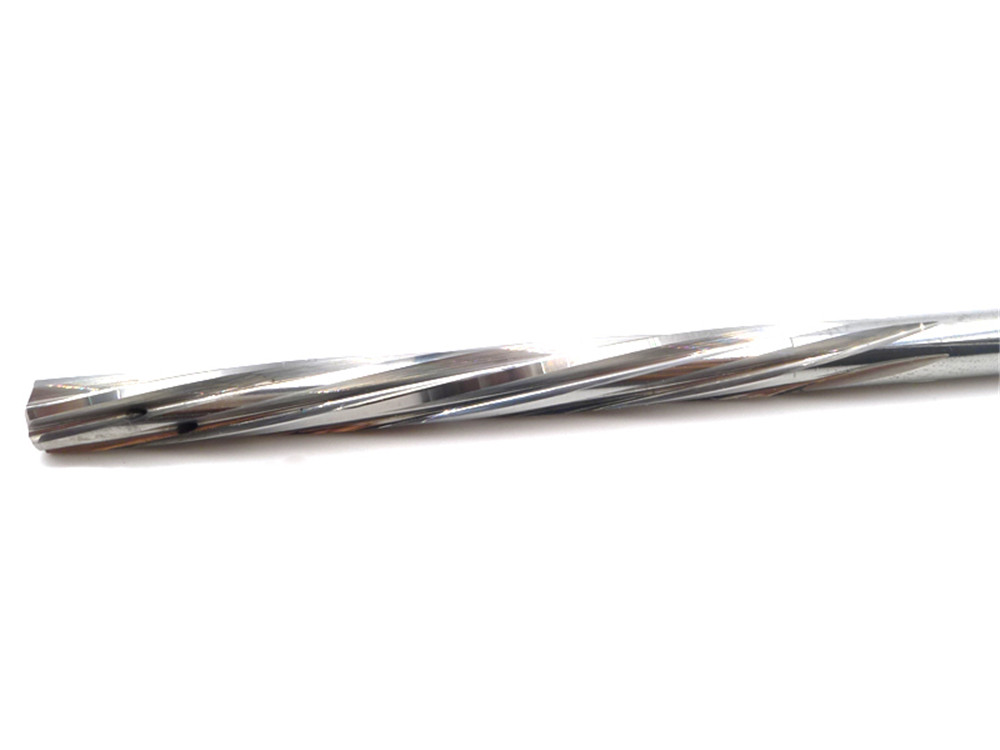

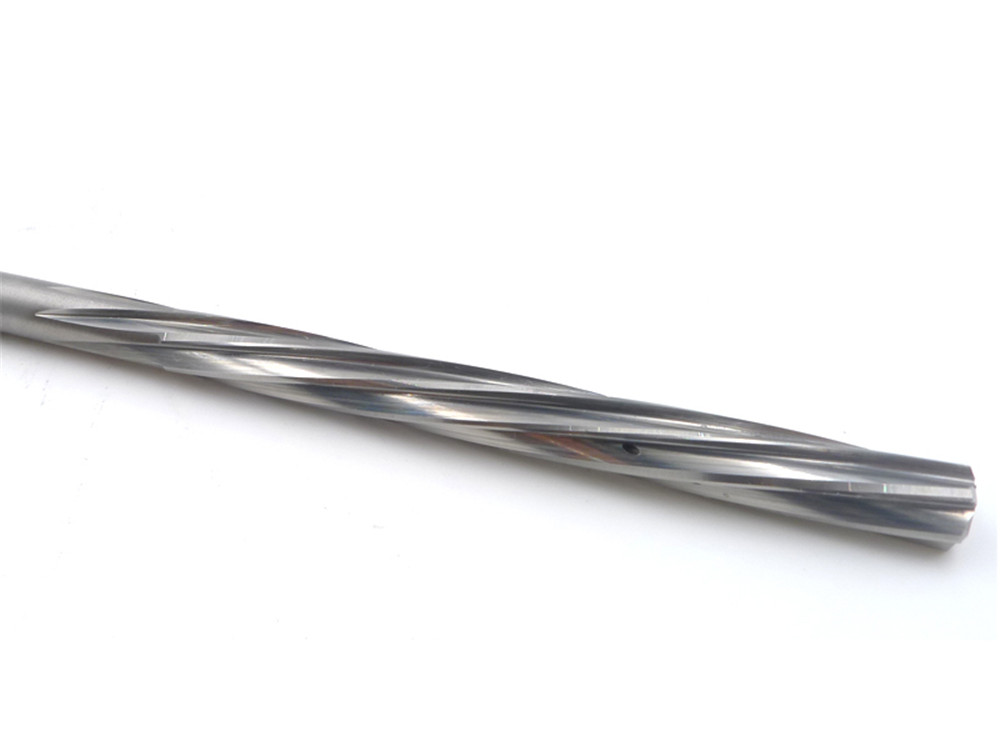

Left-right precision reamer, using high quality coating, high precision inverted cone design, can improve the hole finish, can replace hob, achieve mirror effect
Product Advantages
Left and right cutting tungsten steel reamer, according to the customer's product material and hole bottom requirements, choose different high quality coating, choose different cutting parameters, so as to achieve more stable and efficient processing effect
Left-right cutting reamer bottom edge cutting edge can reduce cutting resistance, but also reduce orifice burr

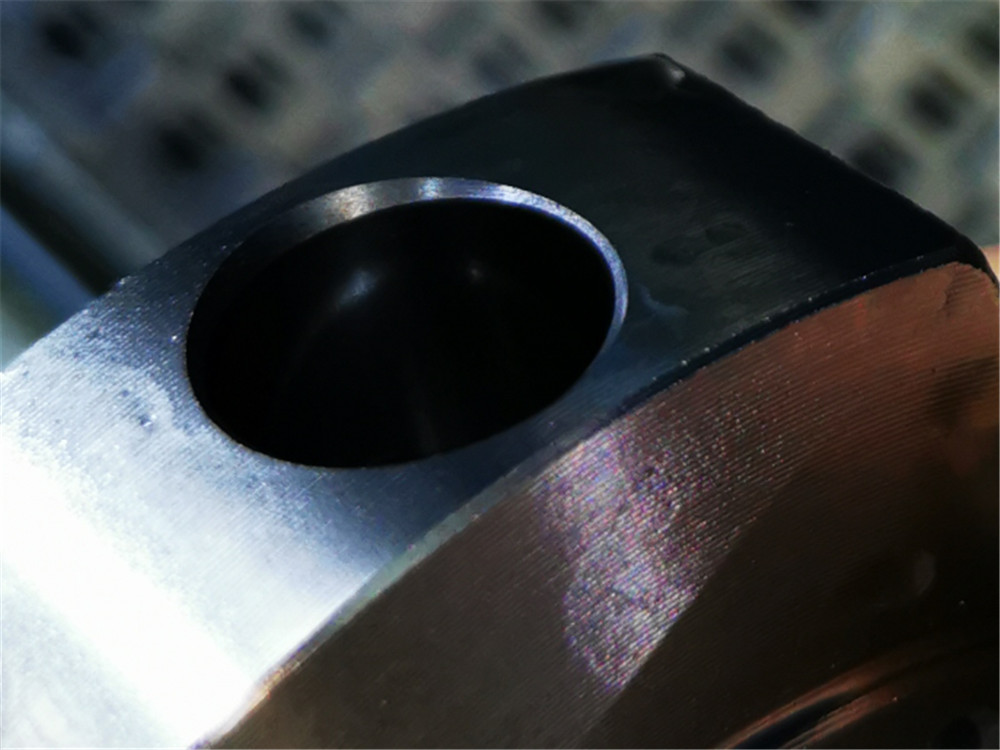

Processing case
Brand: OPT
Model: D6*125*D6*200*6F
Material: 40Cr
Method: Reaming
Parameter: n=2200rpm
Vc max=41.5m/min
Fn=0.15mm/rev
Ra: 0.4
cutting life: 12,000 holes

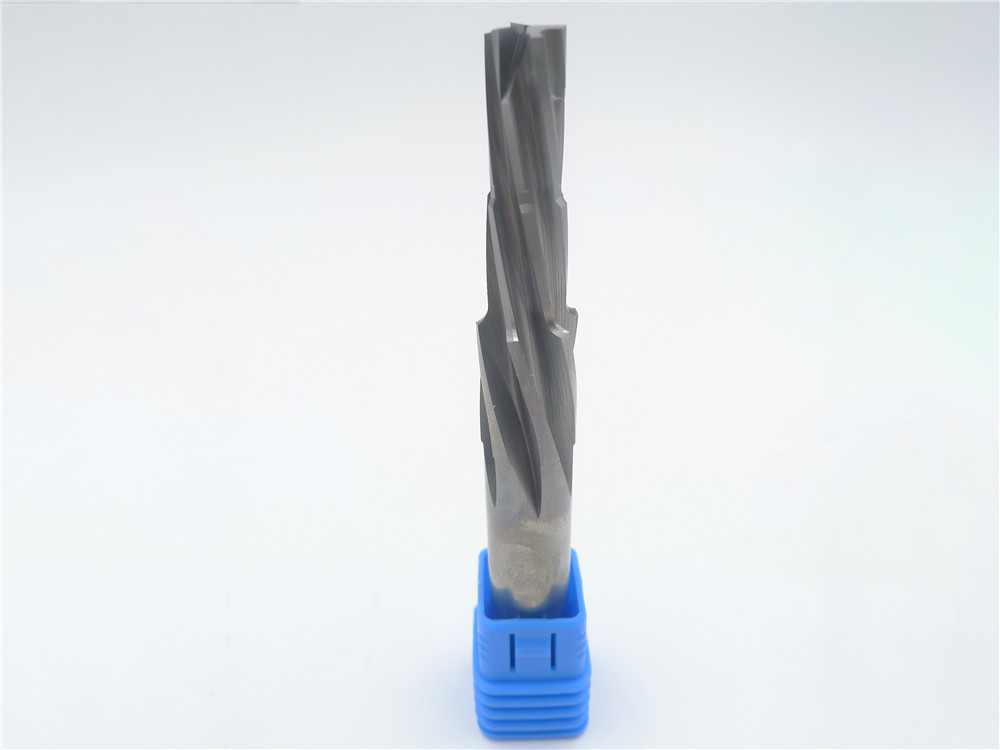

Tungsten steel step reamer can hinge a variety of materials of the workpiece, and the reamed hole finish can reach 0.6, can replace the old process hob processing step hole
