Product Advantage

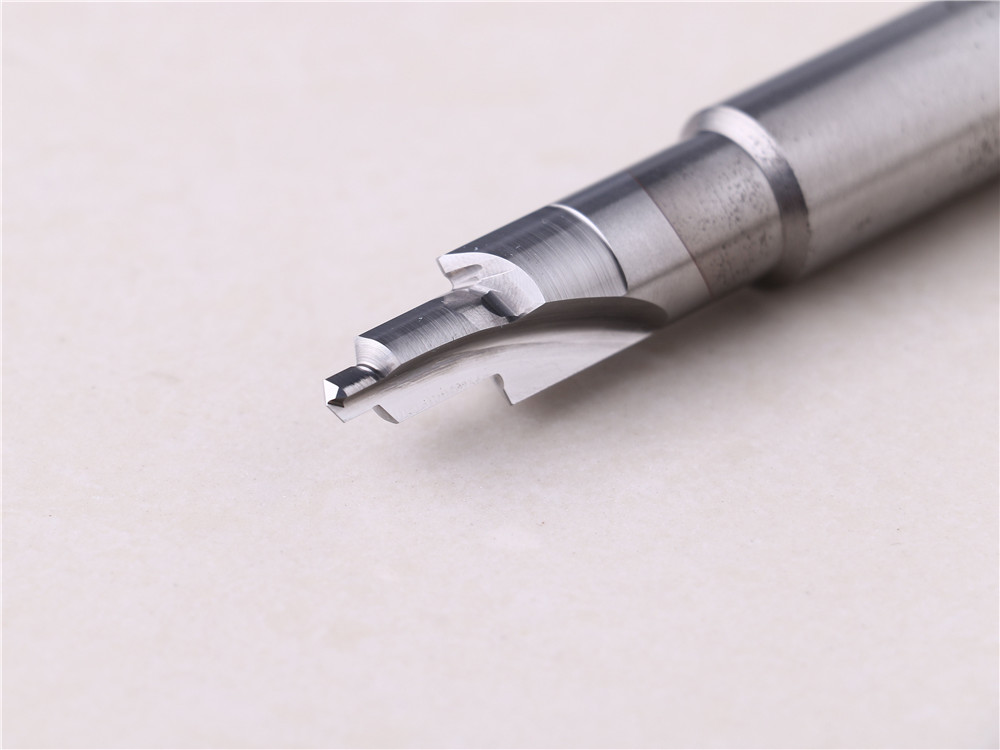

The forming tool is used for machining the forming surface of the workpiece. According to the drawings of the workpiece, the tool can be formed once, which can greatly improve the working efficiency and accuracy

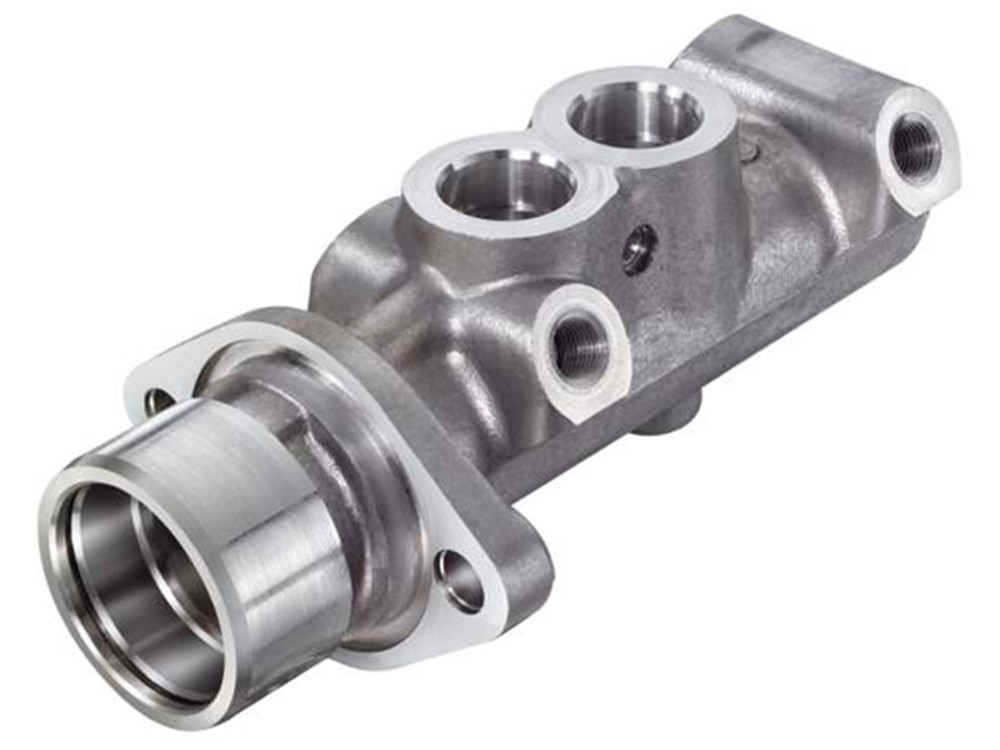

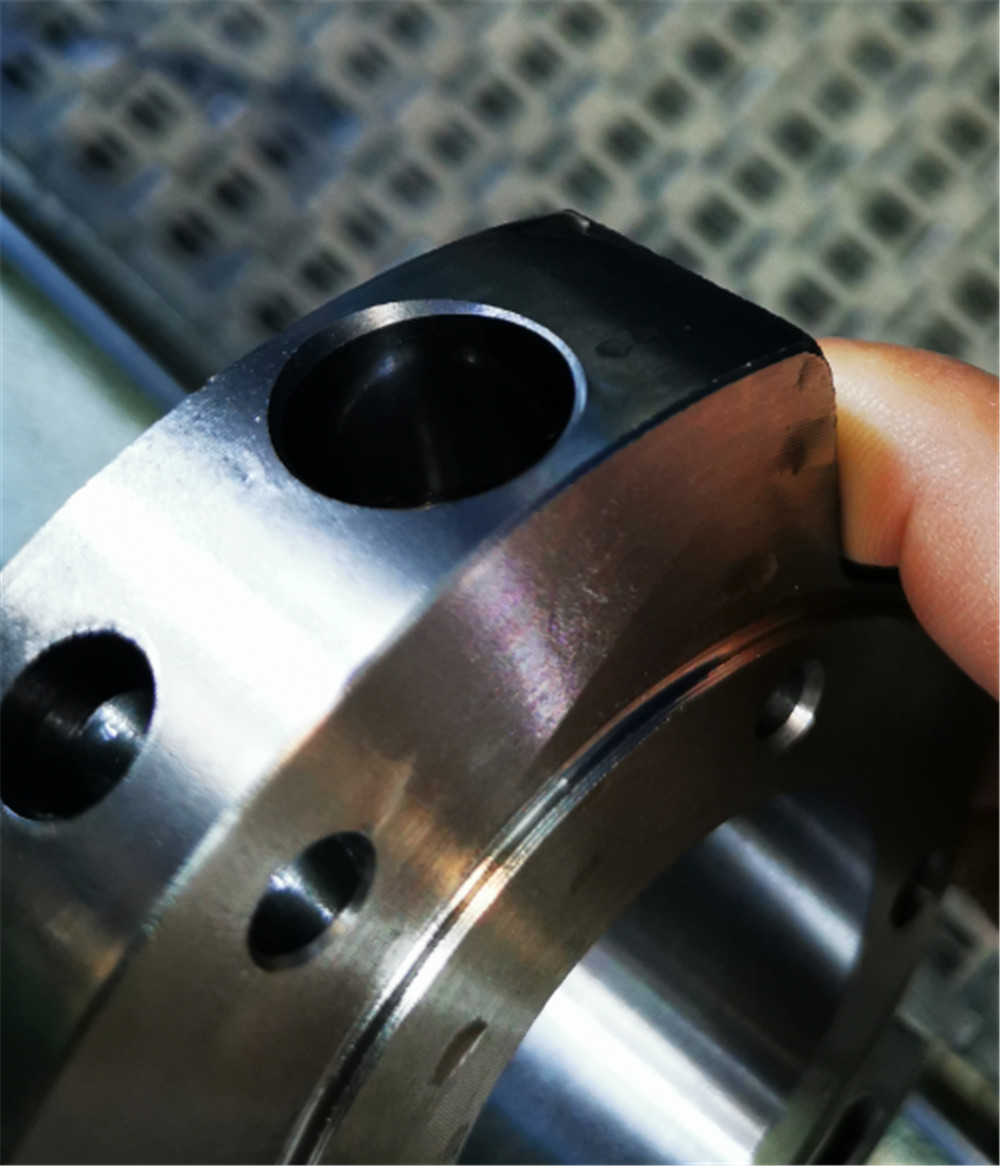

The step hole on the customer's workpiece is still chamfered. If it is done with several drill bits and chamfered knives, it will require frequent tool change and waste processing time! The processing efficiency is low, if the forming knife is processed once, the efficiency is high, and the positioning is not repeated, and the processing accuracy is high
Product Advantages

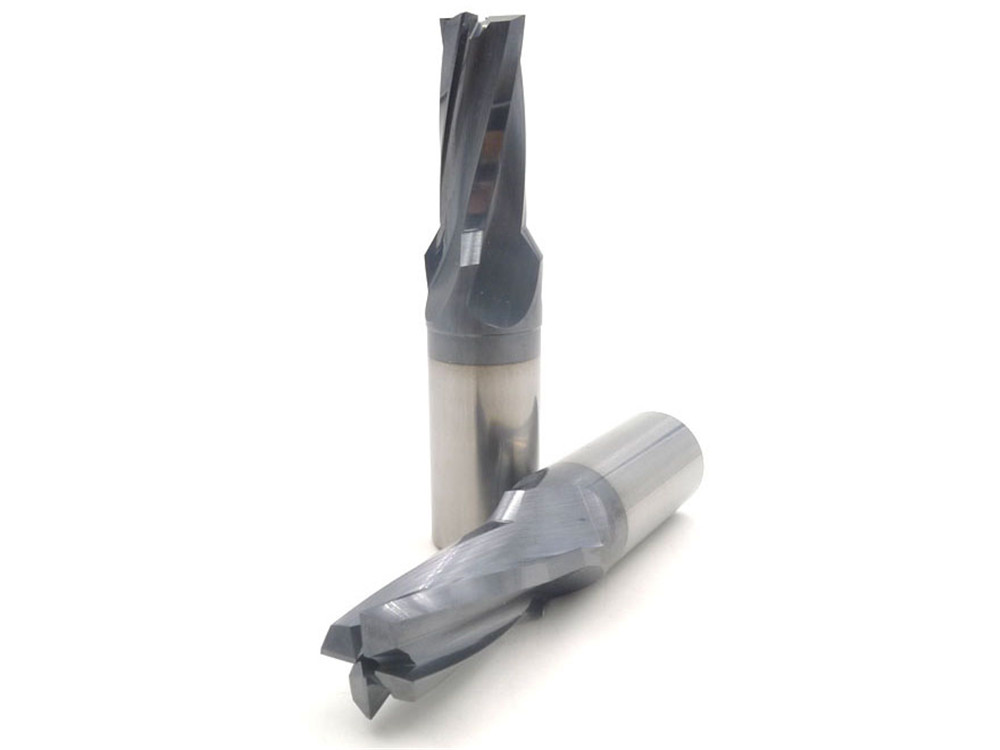

Left and right cutting tungsten steel reamer, according to the customer's product material and hole bottom requirements, choose different high quality coating, choose different cutting parameters, so as to achieve more stable and efficient processing effect

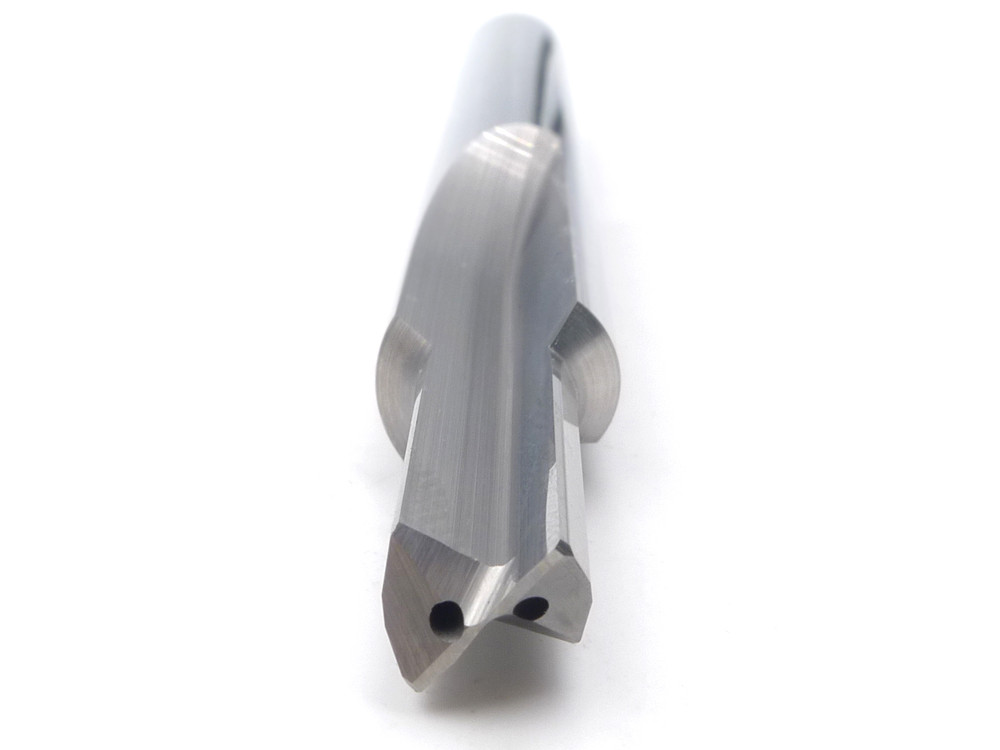

Internal cold drilling and chamfering forming, can greatly improve the cutting efficiency, tool tip cooling fast, not easy to break the knife
Processing case
Brand: OPT
Model: D10.5*12.5*D13R2*D16*100*6F
Material: HT250
Method: Reaming
Parameter: n=700rpm
Vc max=28.5m/min
Fn=0.2mm/rev
Ra: 0.4L;
cutting life:19000 holes
Tungsten steel forming reamer, can ream a variety of materials of the workpiece, and ream finish up to 0.6, can replace the old process hob grinding hole, improve efficiency and accuracy
